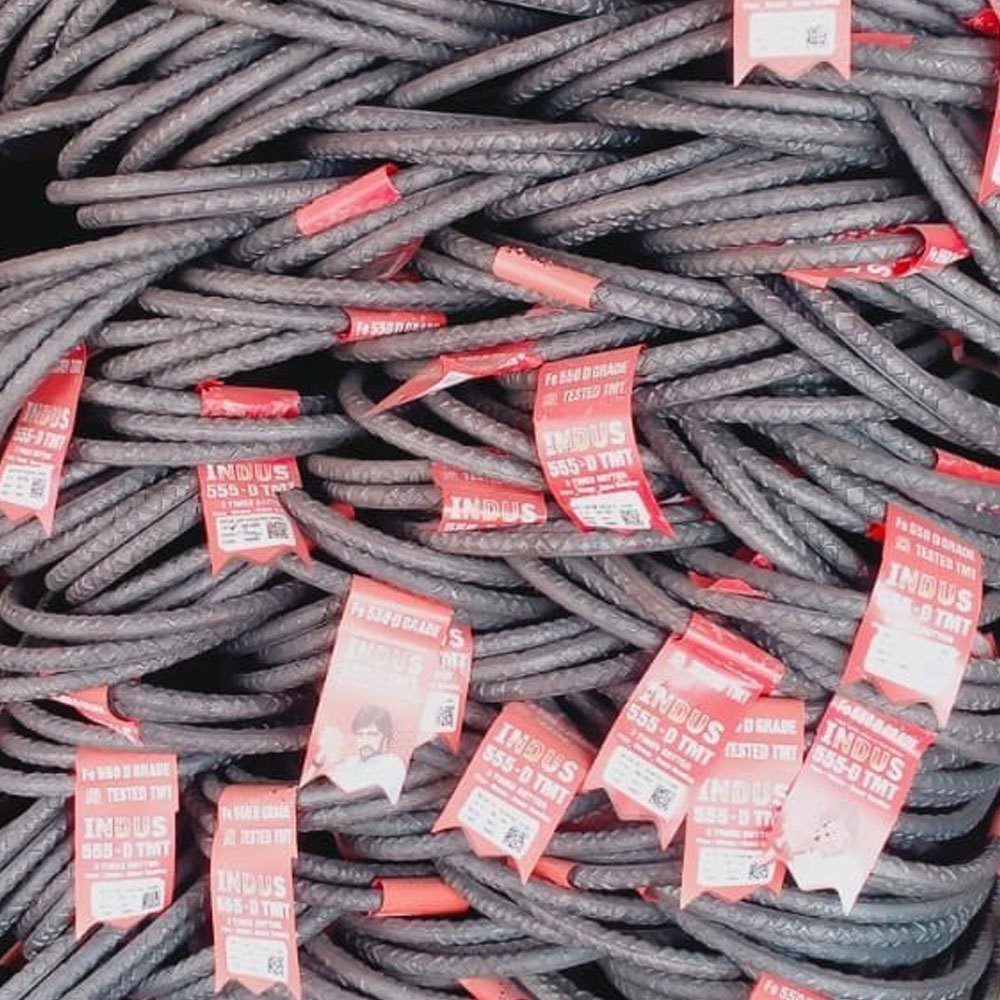

Indus Steel Bars

Features

Xtra Bonding: The unique pattern of X-Ribbed provide more ribbed area for concrete mixture to bond with the steel rod, enhancing the strength of the buildings.

Xtra Elongation: Indus X ribbed rods have the Xtra benefit because of higher ductility which will suit any kind of construction.

Xtra Safety: The added strength (Proof strength and Ultimate Tensile strength) to the steel rods helps in more safety for the buildings.

Xtra Life: The Xtra intrinsic corrosion resistance property of these bars gives longer life to the structure.

Mechanical Properties BIS Standards Vs Indus 555-D TMTIS:1786Indus TMTGradeFe-550Fe-555-DProof / Yield StrengthN/mm2 (min)550570Tensile Strength
(8% more than proof strength
subject to min. of)N/mm2 (min)
600670Elongation% (min)14.5%18%Bend Test
(No Traverse crack at 180 degree
bend around mandrel)(up to 22 mm)4D3D(above 22 mm)
5D4DRe Bend Test
(No Traverse crack at 45 degree bend
and reverse bend through 22.5 degree
around mandrel)(up to 10 mm)

5D5D(above 10 mm7D6D
Chemical PropertiesBIS Standards Vs Indus 555-D TMTIS:1786Fe-555-D IndusFe-550Fe-555-DCarbon% max0.25%0.20% maxPhosphorus% max0.040%0.035% maxSulphur% min0.0400.035% maxManganese% min0.42% min0.72% min
